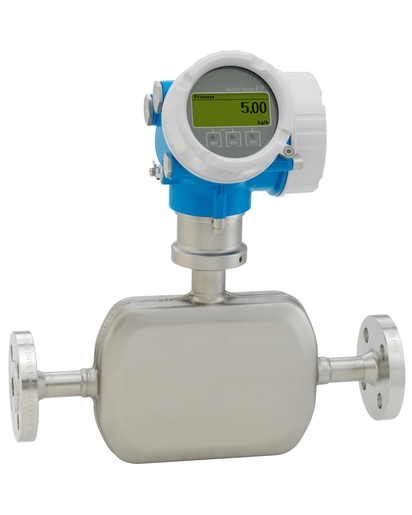

Proline Promass A 200
科里奧利質量流量計

真正的兩線制回路供電的流量計，用于極小流量的高精度測量。
一體式Promass A是在嚴苛工況下進行連續過程控制的理想選擇。單測量管流量計帶獨一無二的自排空功能，能夠高精度測量極小流量的液體和氣體，也可以在高壓條件下測量。采用經濟的兩線制回路供電技術和本安設計（Ex ia），即使在危險區中使用Promass A 200也具有最高操作安全性。Heartbeat Technology心跳技術確保過程始終安全。

優勢
所需安裝空間?。壕o湊型輕量化傳感器

最高產品質量：自排空的測量管設計

最高過程安全性：耐受腐蝕性環境條件，可以在內部可能發生堵塞的管道中測量

接線方便：儀表配備獨立接線腔

操作安全：配備帶觸摸鍵操作的背光顯示屏，操作時無需打開儀表

帶自校驗功能：采用Heartbeat Technology（心跳技術）

應用領域
測量原理不受流體物理特性的影響（例如粘度或密度）

適用于化工行業應用中的極小流量測量

儀表特點

公稱口徑：DN 1...4 (1/24...1/8")

最大過程壓力：430.9 bar (6250 psi)

最高介質溫度：+205 °C (+401 °F)

兩線制回路供電技術

堅固耐用的雙腔室外殼

工廠安全性：通過多項國際認證（SIL，防爆）

特征和規格
Density/Concentration
氣體
液體
測量原理
科里奧利質量流量

產品標題
Genuine loop-powered flowmeter for accurate measurement of lowest flow rates. Suitable for applications with smallest flow quantities in the chemical industry.

傳感器特點
Space-saving installation – compact, lightweight sensor. Highest product quality – self-drainable measuring tube design in all line sizes. Optimum process safety – resistant to corrosive ambient conditions and internal clogging. Nominal diameter: DN 1 to 4 (1??? to 1??"). Process pressure up to 430.9 bar (6250 psi).

變送器特點
Convenient device wiring – separate connection compartment. Safe operation – no need to open the device due to display with touch control, background lighting. Integrated verification – Heartbeat Technology. Loop-powered technology. Robust dual-compartment housing.

公稱口徑范圍
DN 1 to 4 (1??? to 1??")

接液部件材質
Measuring tube: stainless steel, 1.4435 (316/316L); Alloy C22

測量變量
Mass flow, density, temperature, volume flow, corrected volume flow, reference density

最大測量誤差
Mass flow (liquid): ±0.1 %
Volume flow (liquid): ±0.1 %
Mass flow (gas): ±0.35 % Density (liquid): ±0.0005 g/cm3

測量范圍
0 to 450 kg/h (0 to 16.54 lb/min)

最大過程壓力
430.9 bar (6250 psi)

介質溫度范圍
-50 to 205 °C (-58 to 401 °F)

環境溫度范圍
-40 to 60 °C (-40 to +140 °F)

傳感器外殼材質
Stainless steel, 1.4404 (316L)

變送器外殼材質
Stainless steel, CF-3M (316L, 1.4404)
AlSi10MG, coated

防護等級
IP66/67, Type 4X enclosure

顯示/操作
4-line backlit display with touch control (operation from outside)
Configuration via local display and operating tools possible
Remote display available

輸出
4‐20 mA HART (passive)
4‐20 mA (passive)
Pulse/frequency/switch output (passive)

輸入
None

數字通信
HART, PROFIBUS PA, FOUNDATION Fieldbus

電源
DC 18 to 35 V (4‐20 mA HART with/without
pulse/frequency/switch)
DC 18 to 30 V (20 mA HART, 4‐20 mA)
DC 9 to 32 V (PROFIBUS PA)

防爆認證
ATEX, IECEx, cCSAus, INMETRO, NEPSI

產品安全性
CE, C-TICK

功能安全性
Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511

計量認證和證書
Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)

Heartbeat Technology complies with the requirements for traceable verification according to ISO 9001:2008 – Section 7.6 a (TüV attestation)

壓力認證和證書
PED, CRN

材料證書
3.1 material

衛生型認證和證書
3-A, cGMP
