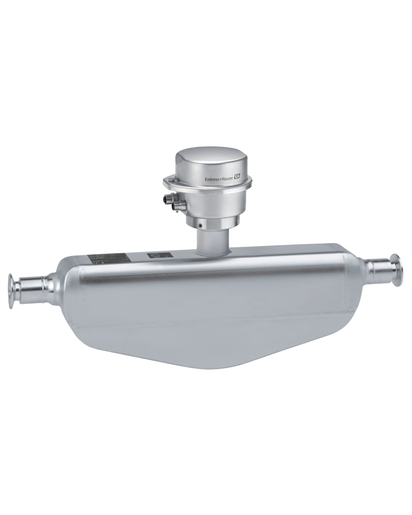

Proline Promass P 100 科里奧利質量流量計
Proline Promass P 100
科里奧利質量流量計
該質量流量計帶超緊湊型變送器，適用于生命科學領域。
Promass P 100流量計可提供比彎管流量計更卓越的性能，以及比直管流量計更佳的排水能力。與現有的最小型變送器配套使用，Promass P 100流量計可用于測量最小流量，尤其適用于空間狹小的無菌環境，是系統集成商、撬裝設備制造商以及其他設備制造商的首選。
優勢
最高過程質量 - 完全符合工業要求
減少過程測量點 - 多變量測量（流速、密度、溫度）
節省安裝空間 - 無需進出口直管段
精小型變送器 - 可測量最小流量
省時的現場操作，無需額外的軟件與硬件 - 內置網絡服務器
綜合驗證 - Heartbeat 技術
應用領域
科里奧利測量原理不受介質物理特性（例如粘度或密度）影響
適用于生命科學領域中的無菌環境測量。
設備特性
ASME BPE、3-A和EHEDG認證，以及低鐵素體
拋光測量管采用1.4435(316L)
可用CIP/SIP快速清洗
堅固的超緊湊型變送器外殼
高防護等級：IP69K
帶現場顯示
特征和規格
Density/Concentration
氣體
液體
測量原理
科里奧利質量流量
產品標題
The specialist for life sciences with an ultra‐compact transmitter. Dedicated for applications under sterile conditions in the life sciences industry.
傳感器特點
Highest process quality – fully compliant to industry requirements. Fewer process measuring points – multivariable measurement (flow, density, temperature). Spacesaving installation – no in/outlet run needs. ASME BPE, 3-A and EHEDG conform & low delta ferrite. Electropolished measuring tube in 1.4435 (316L).
變送器特點
Space‐saving transmitter – full functionality on smallest footprint. Time‐saving local operation without additional software and hardware – integrated web server. Integrated verification – Heartbeat Technology. Robust, ultracompact transmitter housing. High ingress protection: IP69.
公稱口徑范圍
DN 8 to 50 (? to 2")
接液部件材質
Measuring tube: 1.4435 (316L)
Connection: 1.4435 (316L); 1.4404 (316/316L)
測量變量
Mass flow, density, temperature, volume flow, corrected volume flow, reference density, concentration
最大測量誤差
Mass flow (liquid): ±0.1 %
Volume flow (liquid): ±0.1 %
Mass flow (gas): ±0.5 %
Density (liquid): ±0.0005 g/cm3
測量范圍
0 to 70 000 kg/h (0 to 2570 lb/min)
最大過程壓力
PN 63, Class 300, 40K
介質溫度范圍
Standard: –50 to +150 °C (–58 to +302 °F)
Option: –50 to +205 °C (–58 to +401 °F)
環境溫度范圍
Standard: –40 to +60 °C (–40 to +140 °F)
Option: –50 to +60 °C (–58 to +140 °F)
傳感器外殼材質
1.4301 (304), corrosion resistant
變送器外殼材質
Compact: AlSi10Mg, coated
Compact/ultra‐compact: 1.4301 (304)
防護等級
Standard: IP66/67, type 4X enclosure
Option: IP69
顯示/操作
4‐line backlit display available (no local operation)
Configuration via web browser and operating tools possible
輸出
4‐20 mA HART (active)
Pulse/frequency/switch output (passive)
輸入
None
數字通信
HART, Modbus RS485, EtherNet/IP, PROFIBUS DP, PROFINET
電源
DC 20 to 30 V
防爆認證
ATEX, IECEx, cCSAus, INMETRO, NEPSI, EAC
產品安全性
CE, C-Tick, EAC marking
計量認證和證書
Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)
Heartbeat Verification: Heartbeat Technology complies with requirements for traceable verification according to ISO 9001:2008, chapter 7.6. a (TUV attestation)
壓力認證和證書
PED, CRN
材料證書
3.1 material
衛生型認證和證書
3-A, EHEDG, ASME BPE, ISPE, cGMP
